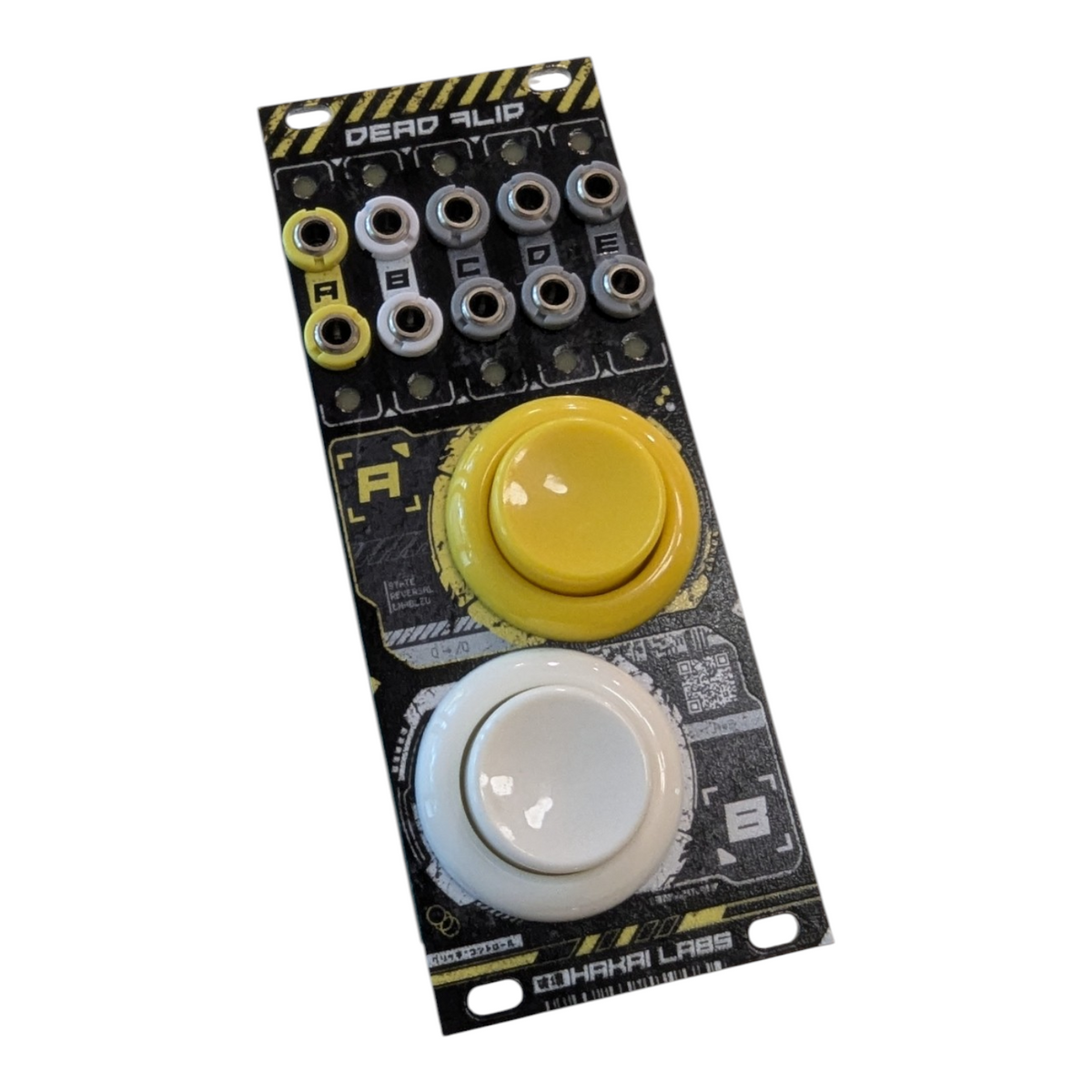

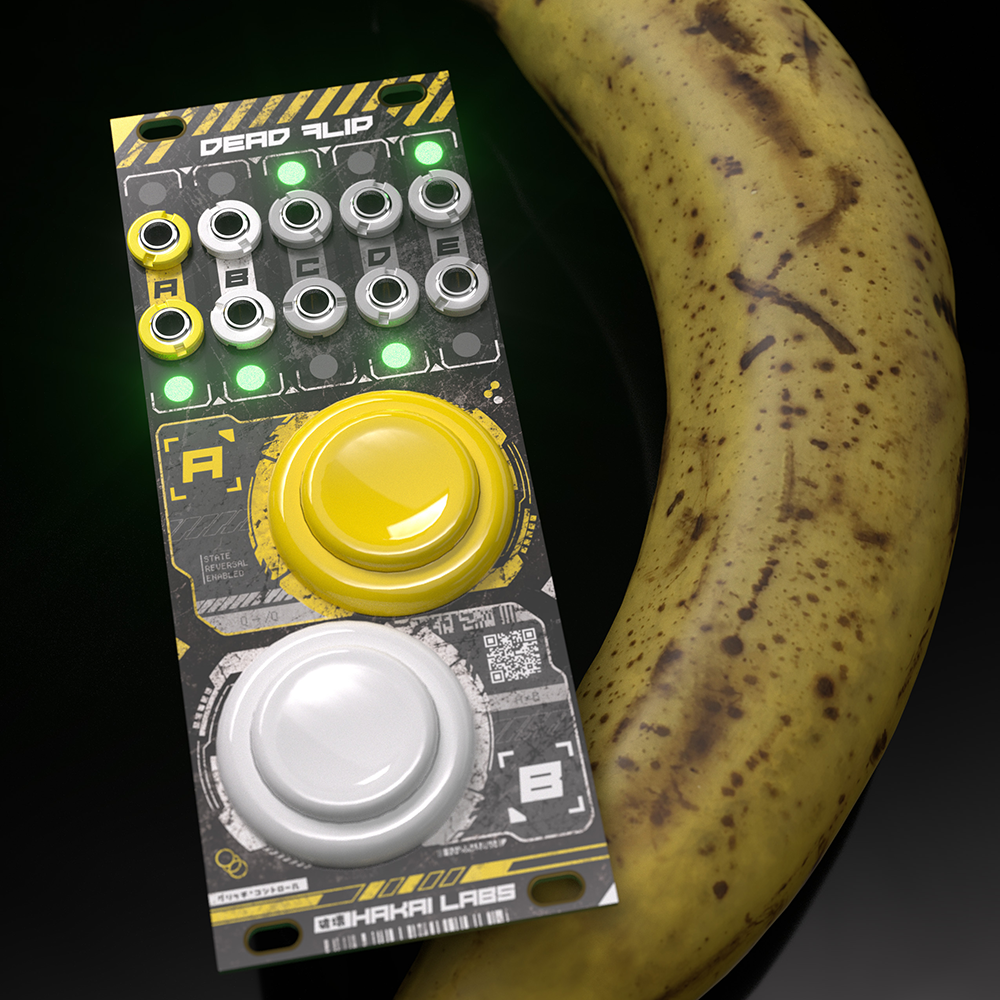

Dead Flip Flipper Button Interface

Flipper Button Interface for Eurorack.

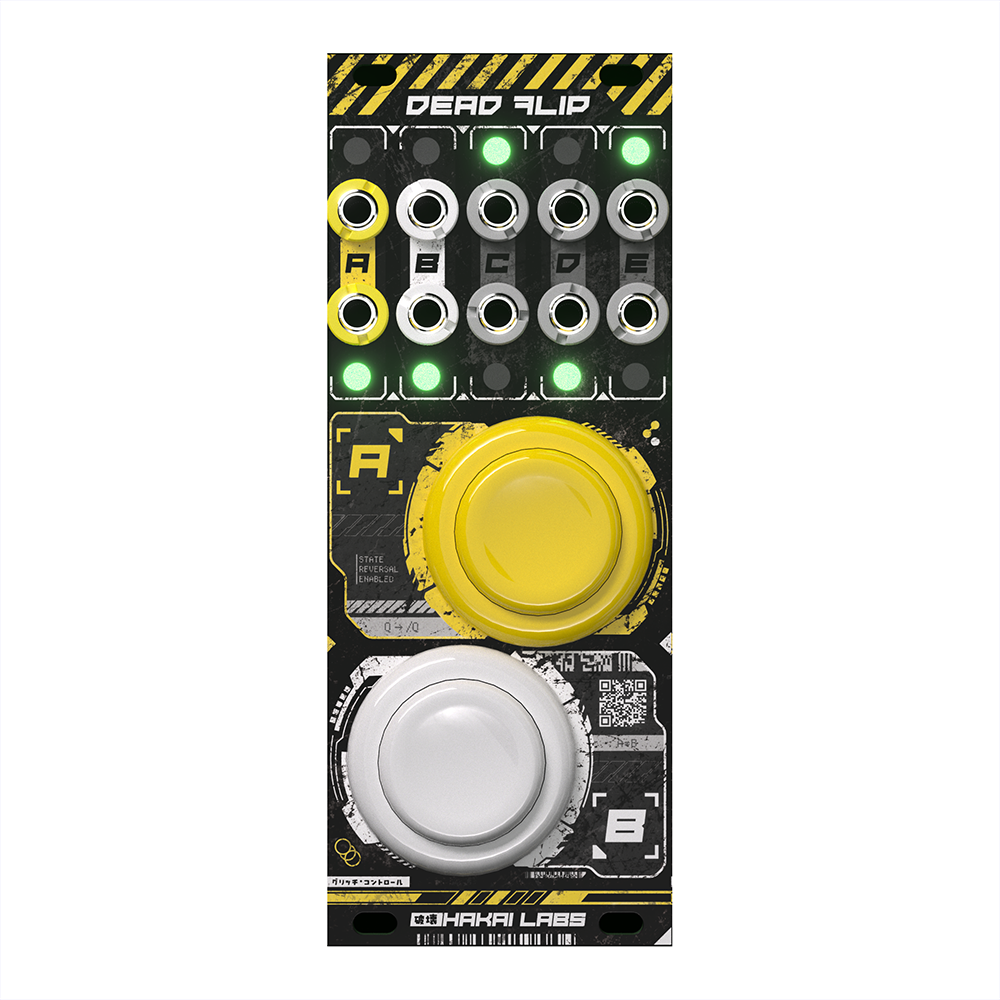

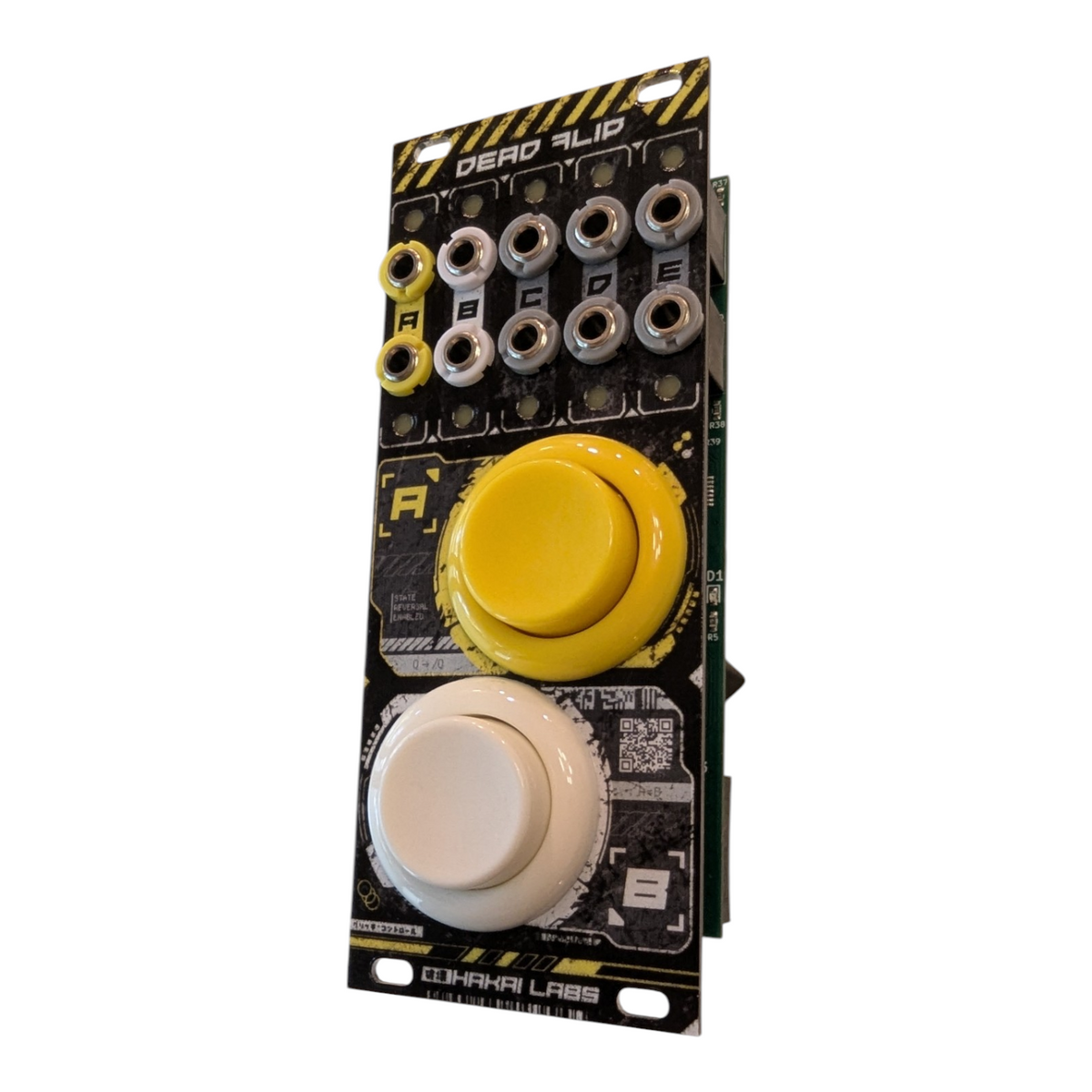

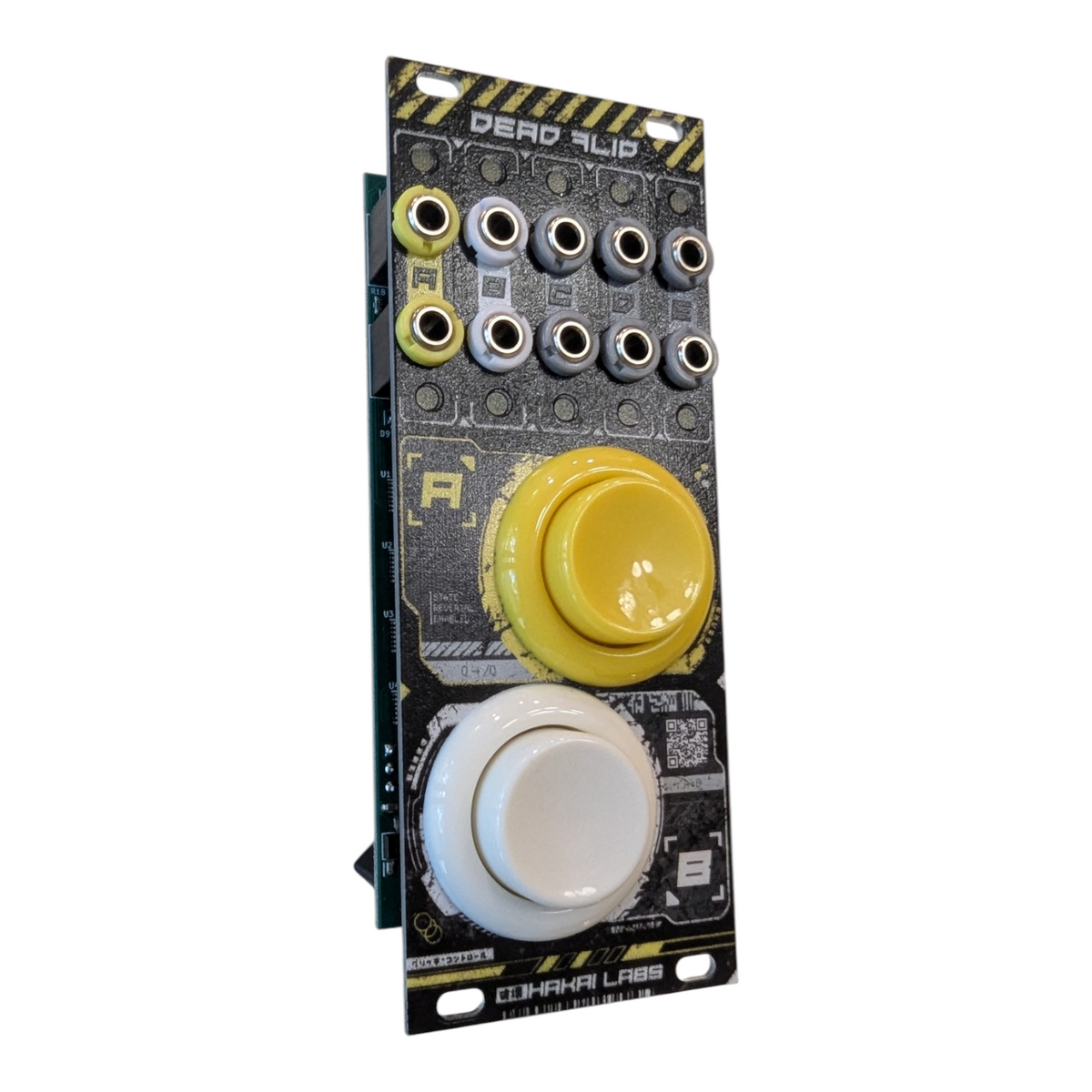

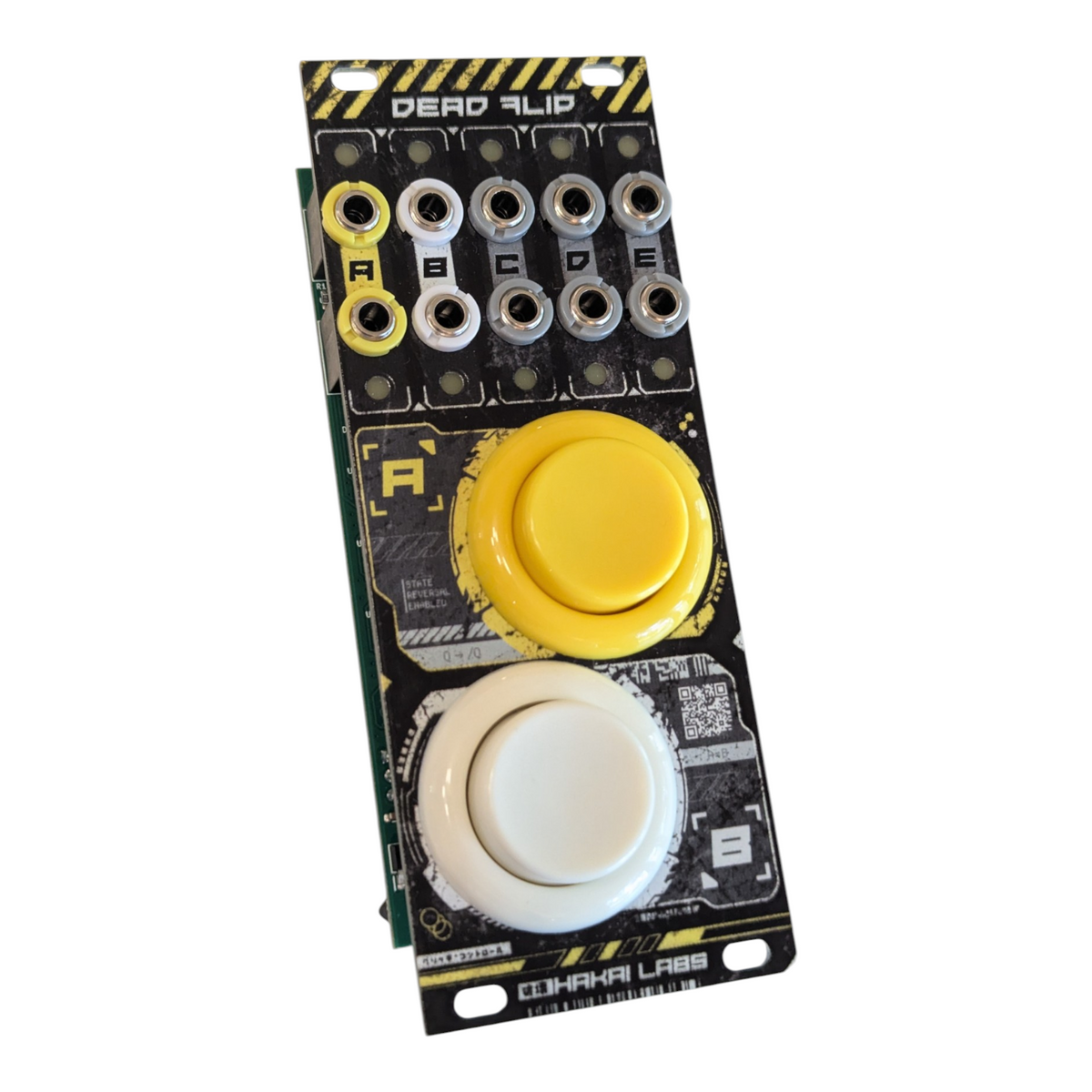

Physical Features

• 2 authentic pinball flipper buttons on front panel.
• 5 columns and 2 rows of gate outputs.  Bottom row always being the inverse of the top row.

• Flipper buttons use optical sensors for extremely reliable and smooth operation.
• Full color industrial themed UV printed front panel with artwork by Ryan Trommer.
• 10HP

Modes

Currently the Dead Flip module contains 3 distinct operating modes.  These modes can be cycled at startup by pressing and holding in both buttons and powering on the module.  Once powered on, release the buttons and it will cycle into the next operating mode.  The C, D, and E LEDs will flash indicating if you are in mode 1, 2 or 3.  The mode selected will persist through power cycles.

Mode 1: Gate Mode

Column A: Gate status of button A
Column B: Gate status of button B
Column C: AND operator on buttons A and B
Column D: OR operator on buttons A and B
Column E: XOR operator on buttons A and B

Mode 2: Latch Mode

Column A: Gate status of button A
Column B: Gate status of buttonB
Column C: Latch toggle for button A
Column D: Latch togglefor button B
Column E: Latch togglefor Button A or button B

Mode 2: Binary Count Mode

Starting at 0, the gate outputs will count up and down in binary.  This is controlled by tapping button A to increase by one and button B to decrease by 1.
